A unique opportunity

Belmont is a premium headquarters office situated in the heart of Uxbridge, the building offers the finest office space within a superbly convenient location.

Belmont offers approximately 106,676 sq ft of premium town centre office space.
With suites from 2,355 sq ft to floors of 26,951 sq ft, Belmont has been designed to provide Grade A offices to suit all requirements.

SCHEDULE OF AREAS

Fourth Floor 16,584 sq ft 1,540 sq m
Third Floor 26,511 sq ft 2,463 sq m
Second Floor 26,950 sq ft 2,504 sq m
First Floor 26,952 sq ft 2,504 sq m
Ground 23,000 sq ft let Remaining 2,355 sq ft 221 sq m
Reception 1,958 sq ft 181 sq m
Street Level 5,245 sq ft 487 sq m
TOTAL 129,586 sq ft 12,039 sq m
Car Parking 170 parking spaces 1:751 sq ft*

Approximate IPMS3 Areas
*Excluding reception areas

Floorplans

Street Level

5,245 sq ft (487 sq m)

Floorplan of Lower ground floor

Ground floor (23,000 sq ft let)

Remaining 2,355 sq ft (221 sq m)

Floorplan of Ground floor

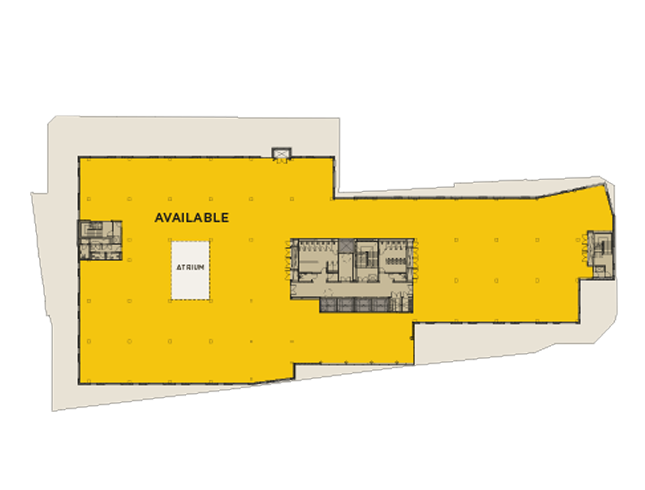

First floor

26,952 sq ft (2,504 sq m)

Floorplan of First floor

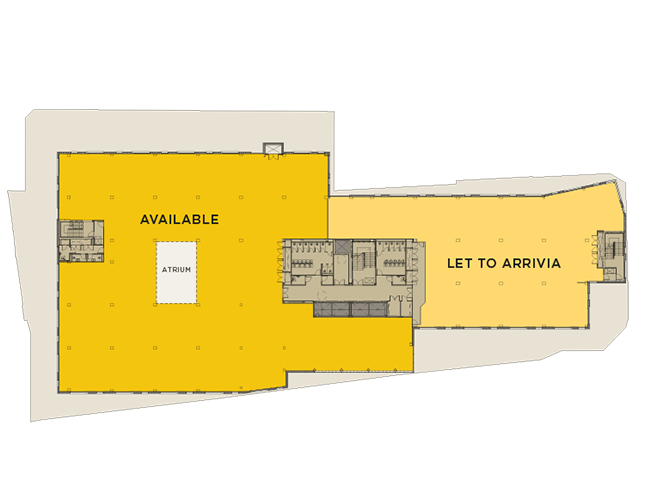

Second floor

26,950 sq ft (2,504 sq m)

Floorplan of Second floor

Third floor

26,511 sq ft (2,463 sq m)

Floorplan of Third floor

Fourth floor

16,584 sq ft (1,540 sq m)

Floorplan of Fourth floor

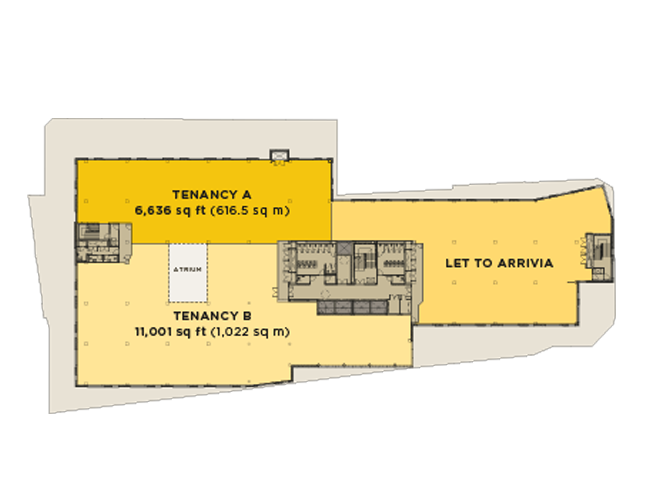

Typical floor subdivision

Floorplan of a typical subdivision

Vertical subdivision

Vertical subdivision plan of the building

Siteplan

Siteplan

Specification

Occupational density
1 person per 8m2
Planning grid
1500mm planning grid
Floor to ceiling heights
2750mm finished floor to ceiling heights in office accommodation
Raised access floors
150mm floor void including tiles
Office lighting
Recessed LED lighting, 400 lux and daylight dimming
Lifts
4 24 person dual-access passenger lifts and 1 dual-access goods lift
Air conditioning
Chilled water fan coil units throughout office space with centralised chilled water plant at roof level
Mechanical services
Mechanical services designed to achieve BREEAM 2014 Excellent Rating. Fresh air provided at 1.5 l/s/m2 via heat recovery ventilation units. 4 pipe fan coil units zoned in accordance with BCO guidelines.
Electrical services
Dedicated Tenant Electrical riser and comms riser, 18.25w/m2 for 1 workspace per 8m2 for small power, 12w/m2 for office lighting including CAT B allowance. Averaged 400lux level for office with perimeter daylight dimming function, intelligent lighting control system for whole building.
WC provision
WC provision designed to provide for 60% male and 60% female occupants. Full height WC cubicles to all washrooms.
Shower provision
4 male and 4 female shower rooms with separate changing facilities for cyclists at lower ground floor level.
External areas
2 roof terraces to 4th floor with panoramic views of the surrounding area
1no. break-out terrace space to ground floor office
Parking
170 car parking spaces including 20 electric car charging spaces

Environmental

  • BREEAM “Excellent”
  • EPC B
  • 50m2 of solar panels to roof
  • 200m2 of photovoltaic cells
  • 300m2 of biodiversity sedum roof
  • Refurbishment of the adjacent Friends Garden
  • 58 cycle storage spaces
  • 58 cyclist lockers
  • 20 electric car charging points
  • 8 shower rooms for cyclists
  • Level access route from street level to cycle storage facilities with adjoining washrooms
